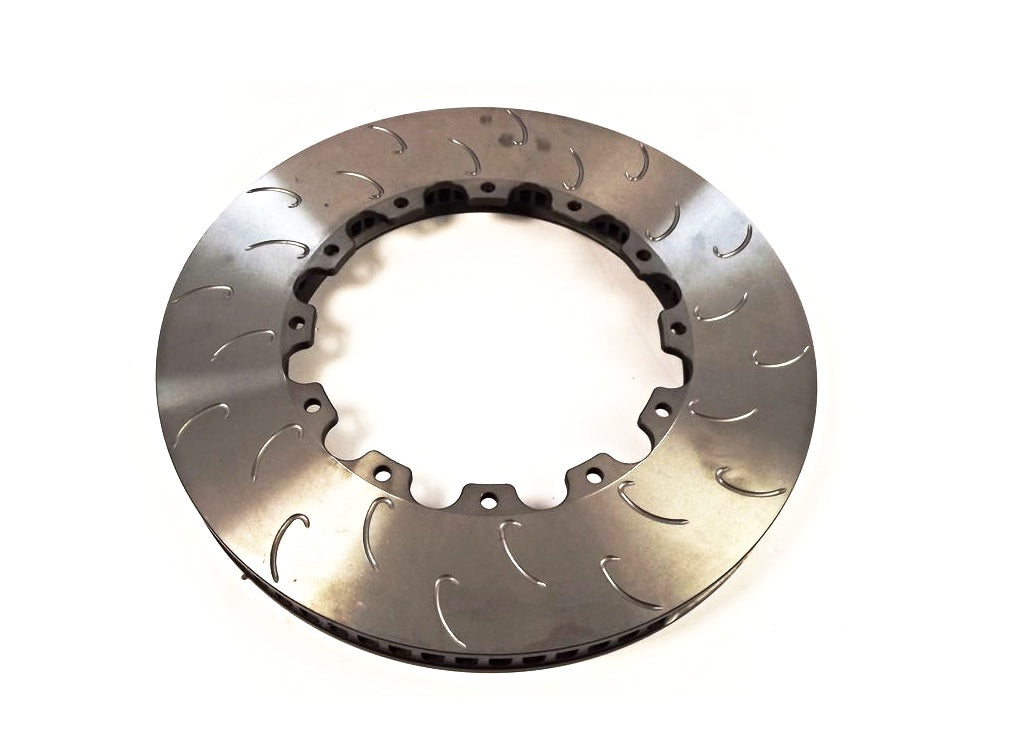

AP RACING CP8080Y10GA Rotor replaceable (front right) NISSAN GT-R R35 2011+ (390x34) J-Hook
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CP8080Y10SD & 11SD, CG12 or GA kits use the latest "Float in the bell" Mounting system, this allows axial and radial float and helps eliminates drive bobbin rattle.
Notes:
Directly replaces standard Ø390 x 32.8mm, 2 Piece disc with OEM Brembo 8 Piston calipers.
Ventilated Ø390 x 34mm Disc & Mounting Bobbin Kit Numbers:
- Drilled Face Disc.
RH = CP8080Y10SD / LH = CP8080Y11SD
- Grooved Face Disc.
RH = CP8080Y10CG12 / LH = CP8080Y11CG12
- 'J' Hook Face Disc.
RH = CP8080Y10GA / LH = CP8080Y11GA
Ordering Note:
When ordering for the first purchase mounting bells are required. Because AP Racing discs use 12 mounting holes while the OEM disc uses 10.
AP Racing Mounting Bell Part Number:
RH / LH = CP8080Y100.
| Model Type & Year | 2011 on |
| Disc Diameter & Thickness (mm) | Ø390 x 34mm |
| Disc Face Type Available | - SD = Drilled - CG12 = 12 Curved Groove Per Face - GA = J Hook |
| Mounting bell fixing kit P/No. | Contact AP Racing for details |
| Weight - Kg | 12.3 |
-
Click on the link to download the relevant drawing.
