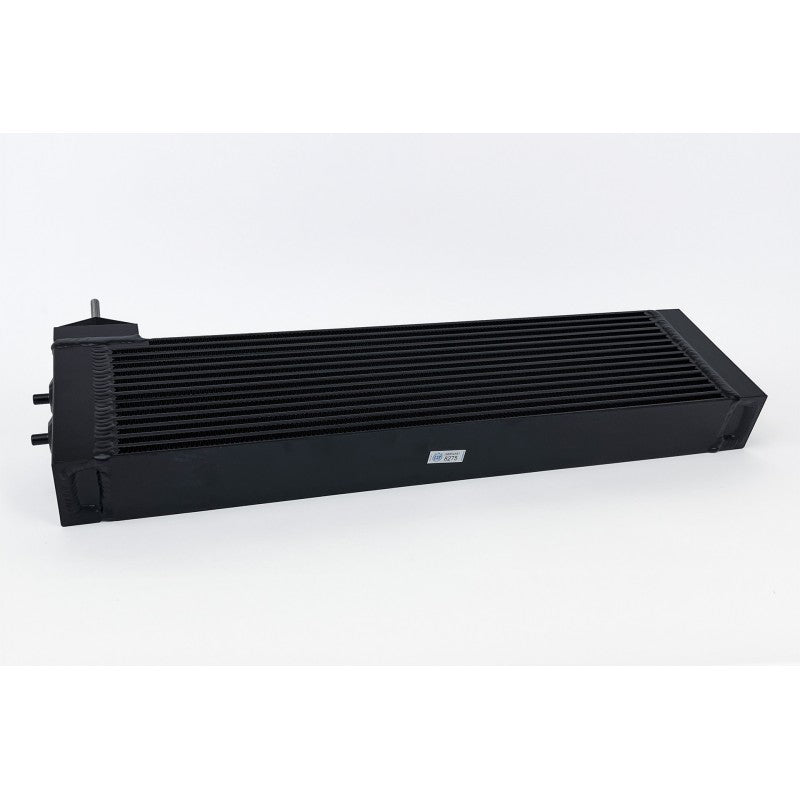

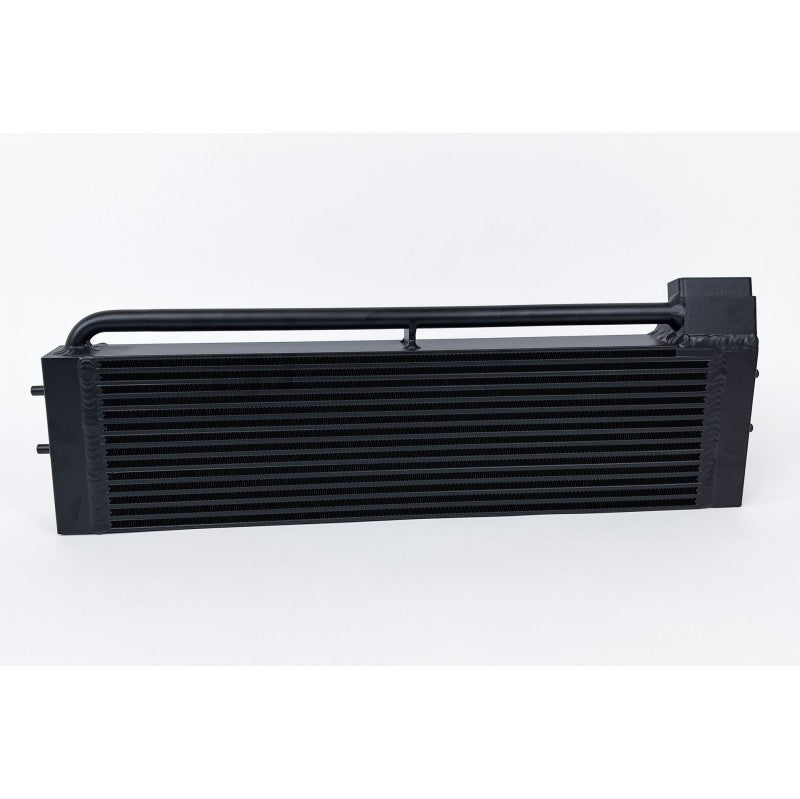

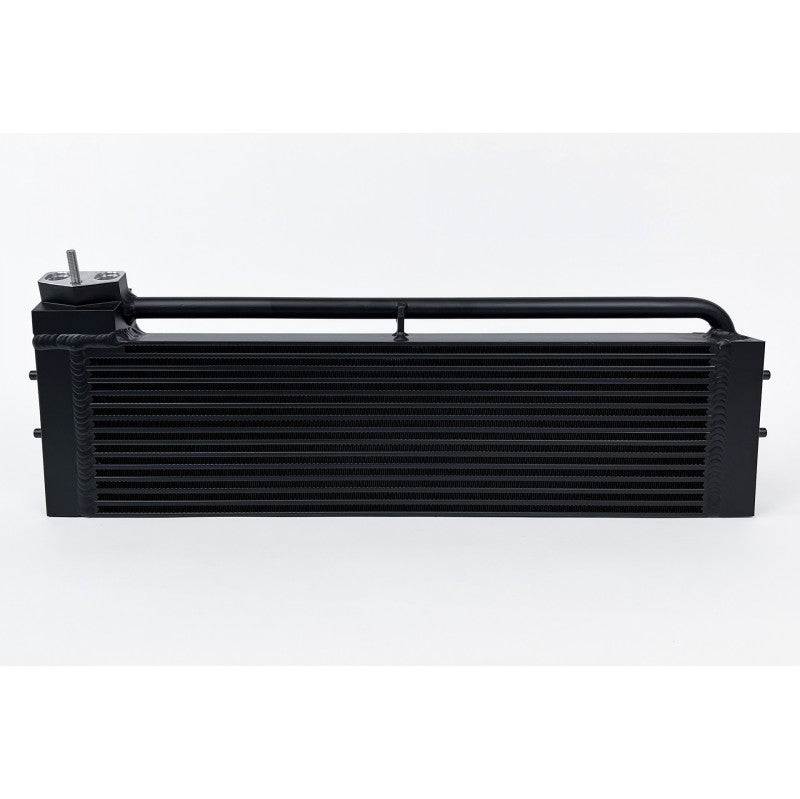

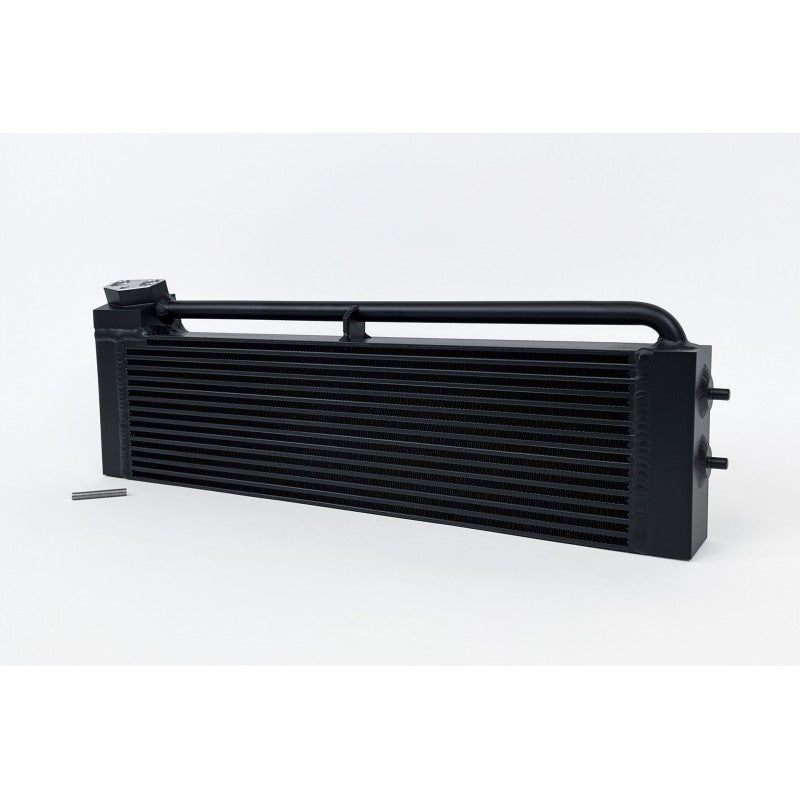

CSF 8275 High-Performance Oil Cooler for BMW M5 (E60) / M6 (E63/E64) 2006-2010
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
The original OE oil cooler from BMW is an all metal design which would make you think it would be fairly robust. However, there are several weak spots in the design that tend to cause leaks. The CSF Race-Spec design reinforces the weak points, especially around the feed and return lines.

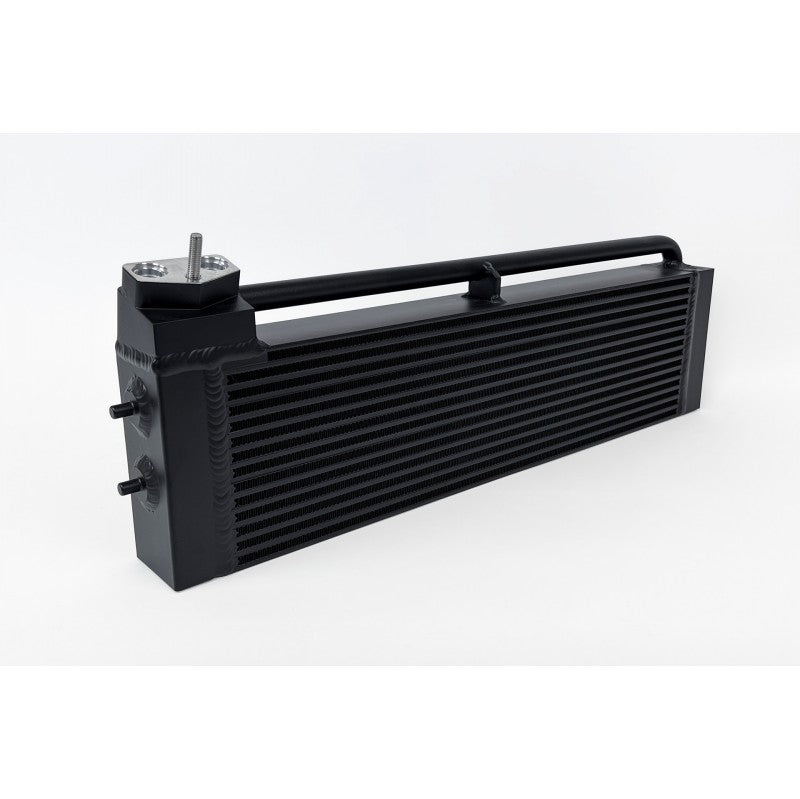

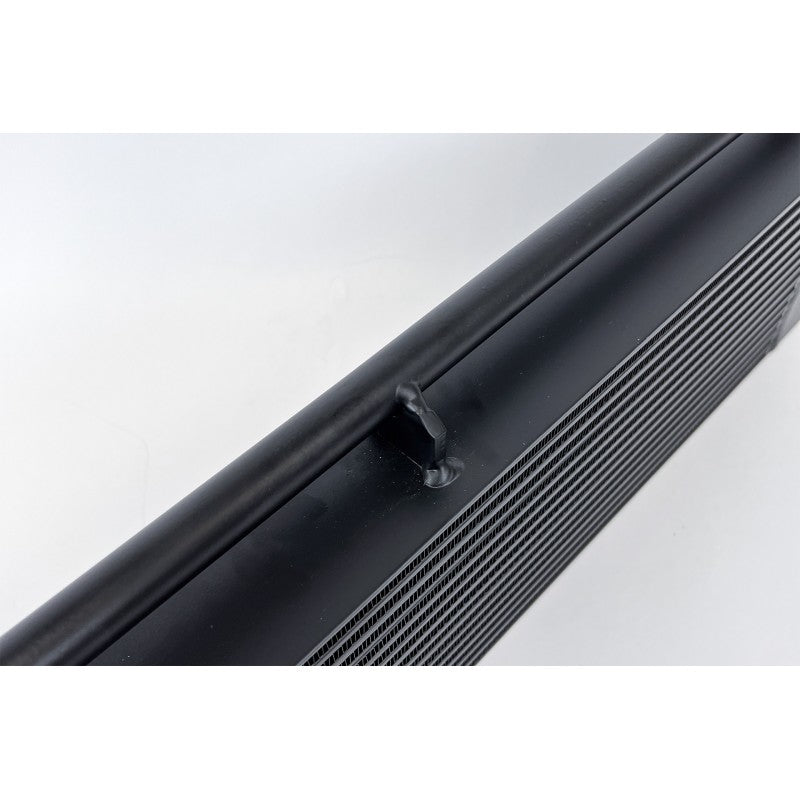

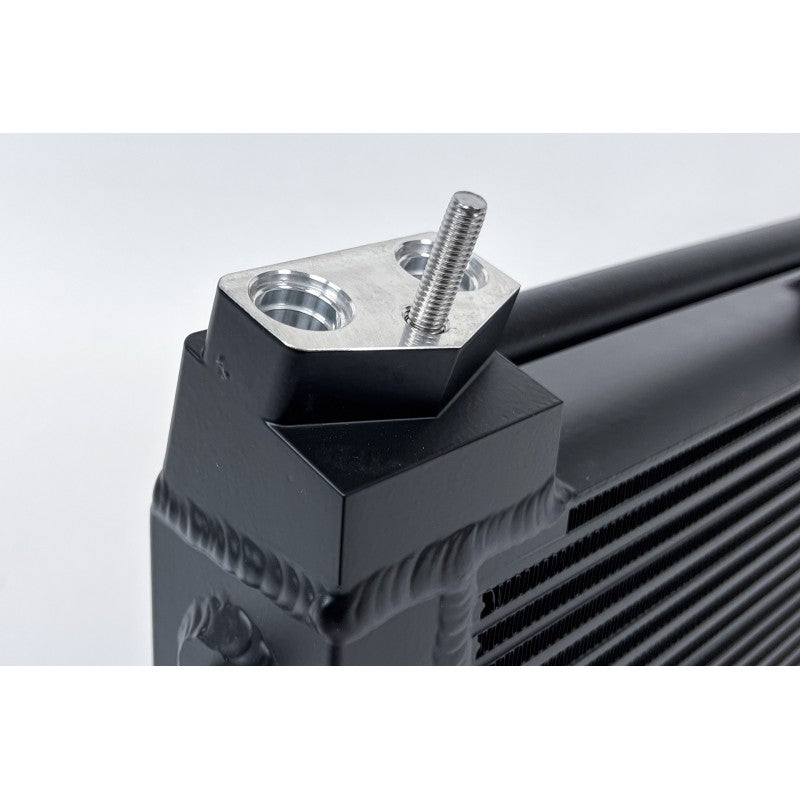

CSF’s solid line connection block can handle any abuse thrown at it while the reinforced and braced return tube is rock solid. CSF also upgraded the more fragile Tub/Fin core to a robust and durable Bar/Plate design. The core is 40% larger than the factory unit with 2 additional rows of oil cooling and much thicker core (63mm vs OE 45mm). This offers superior cooling capacity and volume for the oil system. TIG welded end tanks round out the slew of upgrades creating a much stronger connection than the factory brazed construction.
- High Efficiency & Rugged Durability Bar/Plate Design
- “Aero-Flow” Bar Lightweight Construction for Strength and Maximum Flow

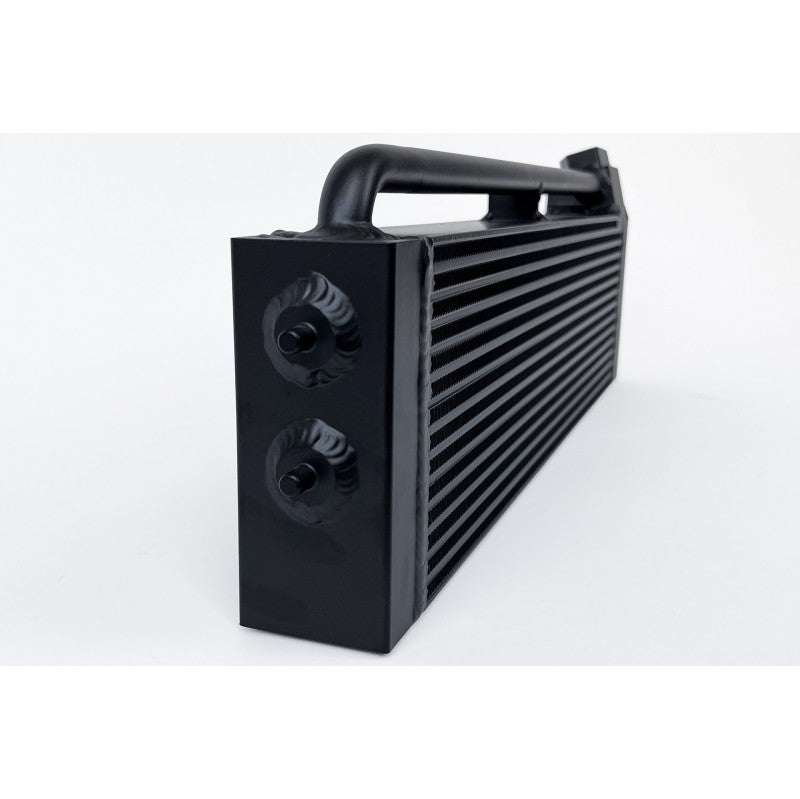

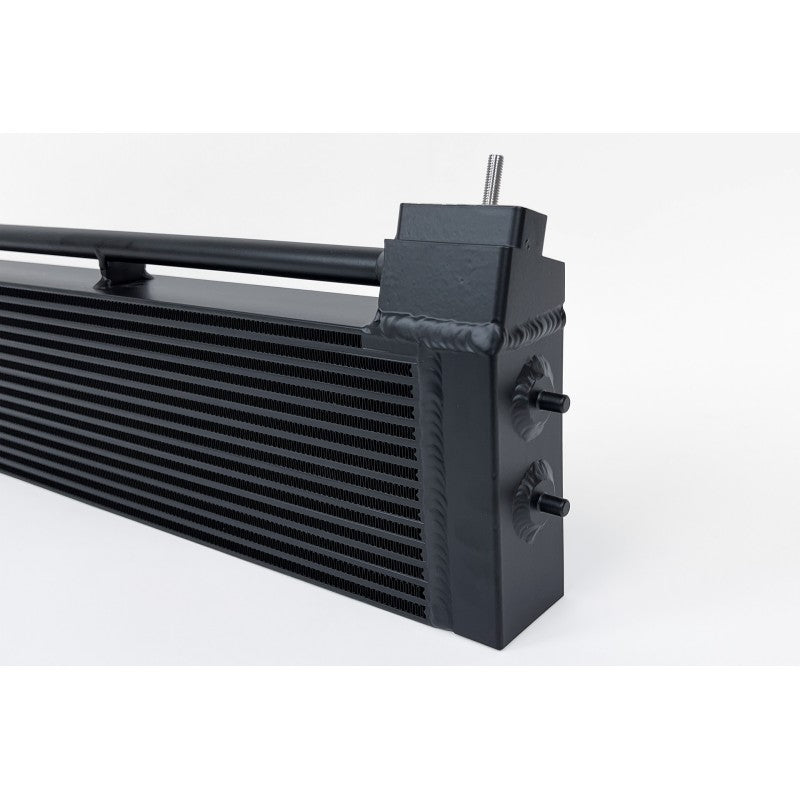

- Cast End Tanks with 100% Tig Welded Construction
- Satin Black Finish for Extreme Protection Against Corrosion and Debris
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
- Requires minor trimming of the plastic shroud to install (instruction included)
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications:
- 2006-2010 BMW E60 M5
- 2006-2010 BMW E63/E64 M6
OEM Part Numbers:
- BMW: 17222282499
- BMW: 17222282699
