HKS 27002-AN001 A/T Oil Cooler NISSAN 370Z/Fairlady Z34
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
- When temperature of automatic transmission fluid is increased, Z34 will be fail safe. Then, throttle angle will be limited and AT manual operation will not work properly. This product prevents from fail safe during sport driving. (Continuous operation at more than 145℃ for 120 seconds or exceeding 150℃ cause fail safe.)
- Temperature of engine oil also increases and engine oil cooler is required for sport driving. This product was developed to be used with HKS Oil Cooler Kit.

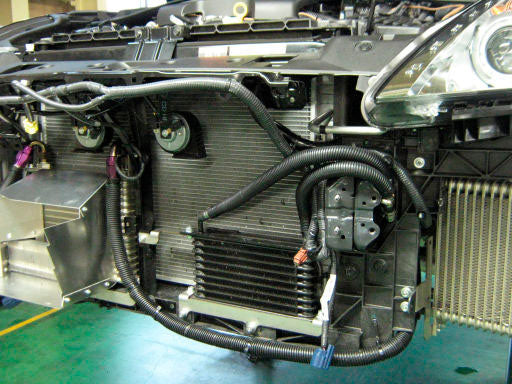

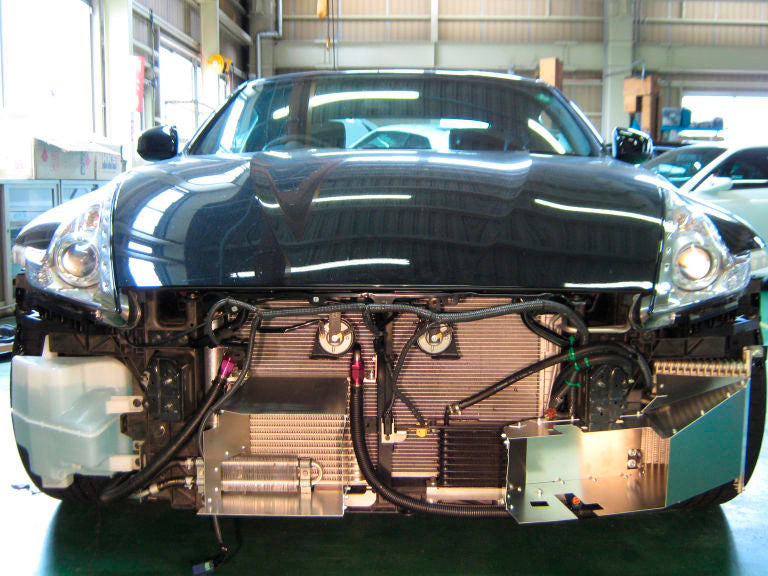

- W200xH130xT32 9 rows core is located in front of radiator.
- Easy installation without any modification. Removal of resin protector is required.
■Performance
At air temperature 10℃, it became fail safe after 7 laps at Fuji Speedway.
After installation of AT Cooler, at air temperature 30℃, it enabled 25 minutes continuous driving at the same circuit.
■Installation time
About 1.5～2 hours
■Components
- AT Fluid cooler core W200 X H130 X T32 9 rows
- AT Fluid cooler core bracket
- Hose φ10
- Hose φ8
- φ10-φ8 adapter pipe
- Hose band #4
- Corrugate tube
■Remarks for installation
- Since popup engine hood is equipped, before removal of bumper, disconnect the negative terminal of the battery and leave at least 3 minutes before installation work.
- Relocation of washer tank is not required even using it with an Oil Cooler Kit.
- Use specified A/T fluid only or it may cause serious failures.
- Follow the service manual for volume adjustment of A/T fluid.
(Adjustment work with a special diagnosis tool CONSULT-III is required.)
