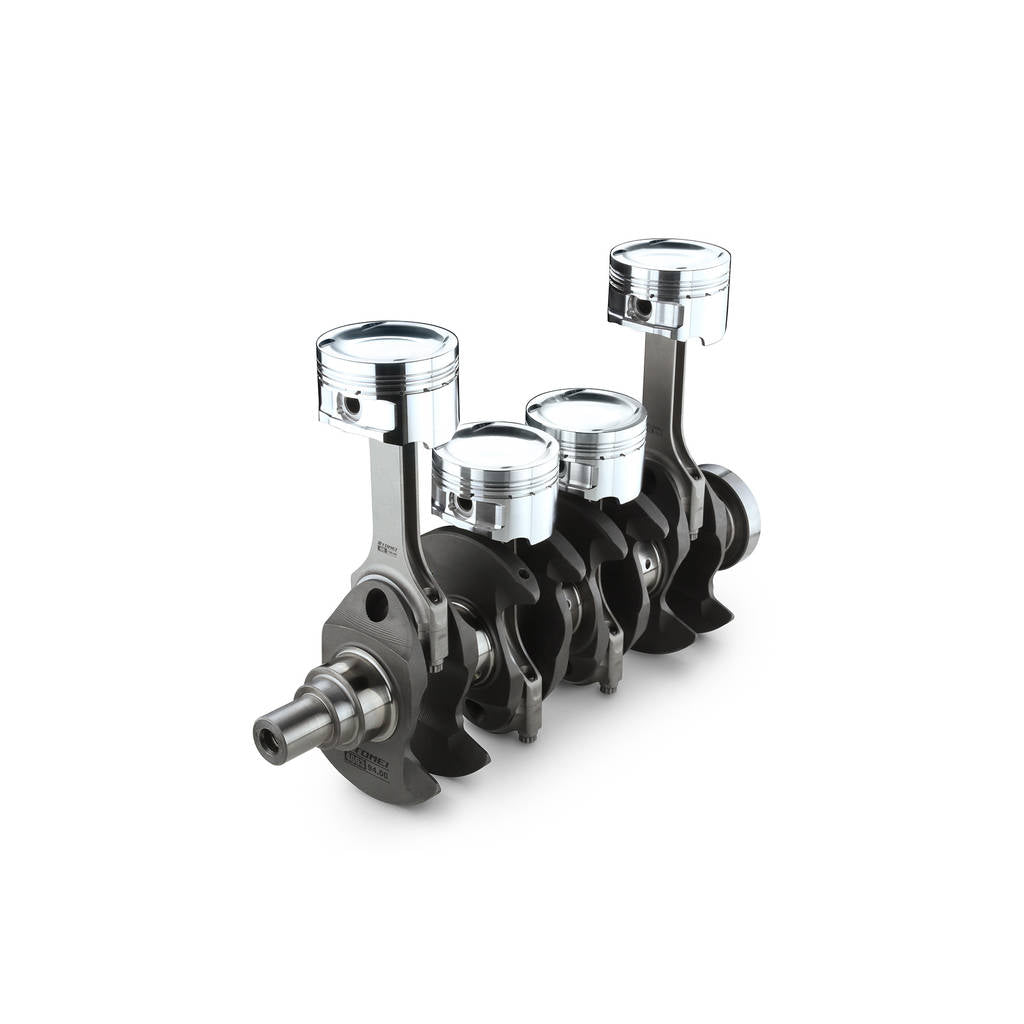

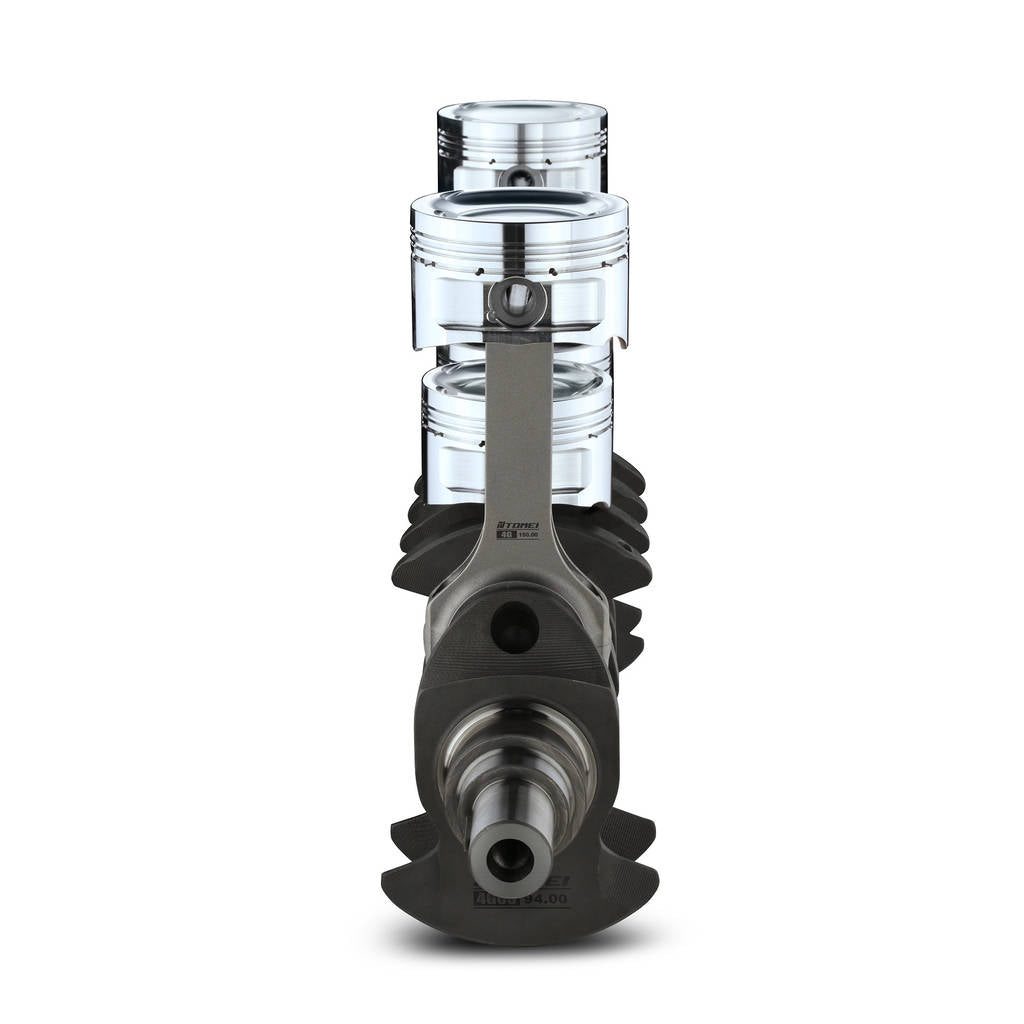

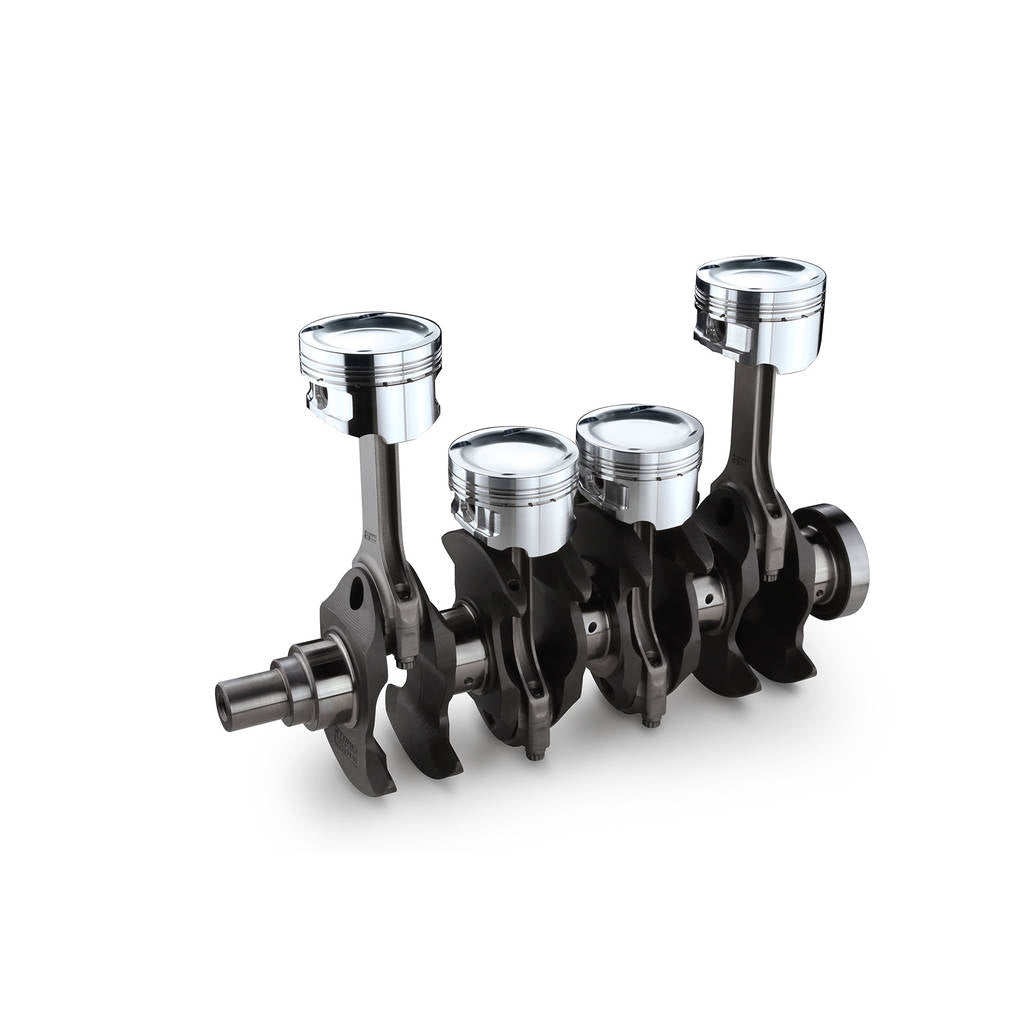

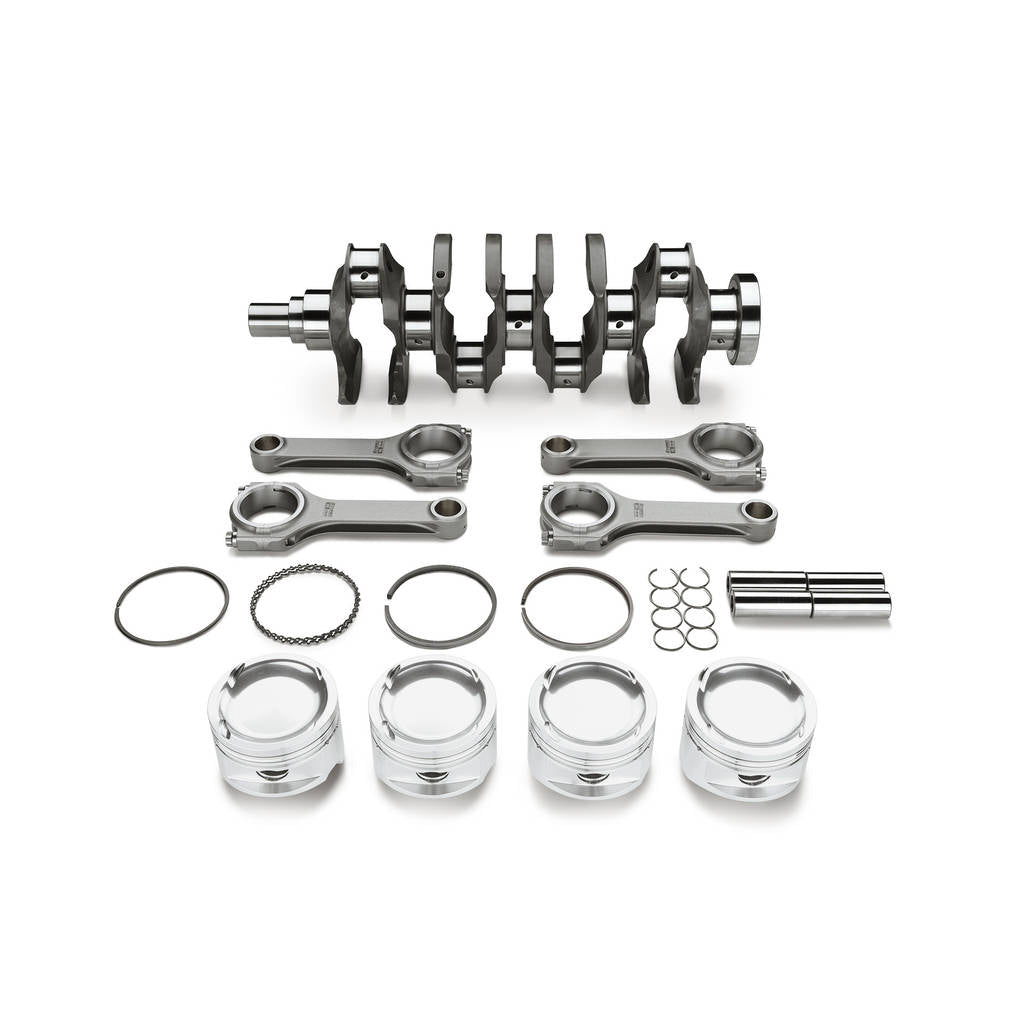

TOMEI TA201A-MT01A 4G63-22KIT 86.0mm
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| BORE (mm) | 86.00 (STOCK +1.0) |
| STROKE (mm) | 94.00 (STOCK +6.0 ) |
| DISPLACEMENT (cc) | 2184.1 |
| C.C. VOLUME (cc) | 43.0 |
| PISTON DOME VOL. (cc) | -19.5 |
| PISTON DECK CLEARANCE/HIGHT (mm) | -0.35 |
| PISTON COMP.HEIGHT (mm) | 31.65 (STOCK -3.35) |
| ROD C-to-C (mm) | 150.00 (STOCK ±0.0) |
| HEAD GASKET BORE (mm) | 86.5 |
| C/R With 86.5-1.0 | 8.76 |
| C/R With 86.5-1.2 | 8.63 |
| C/R With 86.5-1.5 | 8.44 |
| C/R With 86.5-1.8 | 8.27 |
